4M
Trimmer Attachment Facts
|
| ~ |
Models
C and Z Can be retro fitted to virtually any riding lawnmower equipped
with a minimum fifteen AMP electrical charging system. |
| ~ |
The
H model can be retro fitted to the Zero trun mowers. The H model
is equipped with a seperate Hydraulic tank, pump and motor for the
trimmer. This unit is made for the heaviest cutting jobs.
This machine will cut as fast as the string will allow. |
| ~ |
The
C and the Z models are equipped with special designed D.C. electric
motor with a high RPM output. Motor is sealed to keep out dirt, dust
and grit. |
| ~ |
The
cutter head can be adjusted to any angle desired while operator remains
seated. |
| ~ |
All
motors are designed to be approximately the same diameter as the cutter
head that allows for the free mowing of spaces under fences, close
to walls, along borders and etc. |
| ~ |
The
cutter head has a lateral movement to and from base unit & floating
action to help minimize scalping. |
| ~ |
A
new tap-top automatic feed head enables operator to feed string as
needed while seated on base unit. (Pat. pending) This free feeding
head eliminates the need for a string cutter because approximately
one inch of string is fed out with each tap. Trimmer uses line .095
to .135 in size. |
| ~ |
The
pivot arm, cutter head and motor are mounted to the base plate on
tapered bearings increasing longevity and enhancing ease of movement. |
| ~ |
All
models are equipped with tension adjustment for controlling floating
action of the cutter head. |
| ~ |
The
cutter head is equipped with a double spool head containing approximately
twenty feet of string. Because the operator has total control of feeding
string until all of the string has been used effectively, this feature
dramatically reduces the frequency of rewinding string onto cutter
head. |
| ~ |

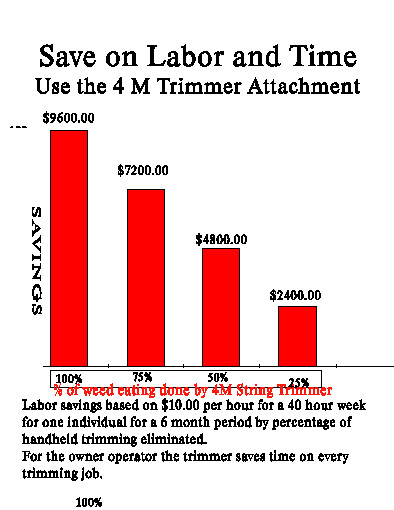

The trimmer attachment
enhances the normal mowing operation by allowing trimming to occur
even as the mowing operation is going forward.
|
